Place of Origin: Jiangsu, China
Blade Thickness: 2.0-4.5mm
Blade Width: 7/10mm
Arbor Size: 16/20/22.23/25.4mm
Teeth per Inch: Other
Teeths:Other
Blade Diameter: 105-600mm
Process Type: Laser welded
Customized support: OEM, ODM

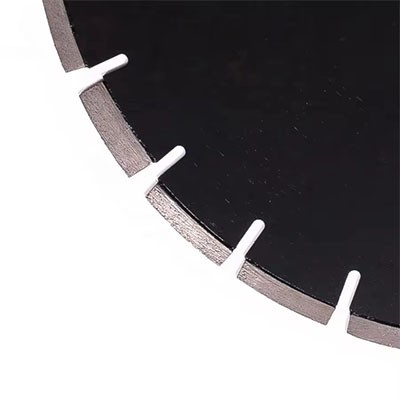

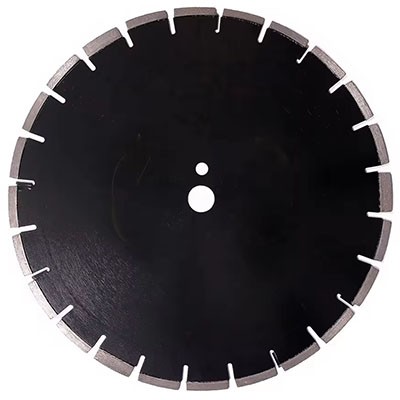

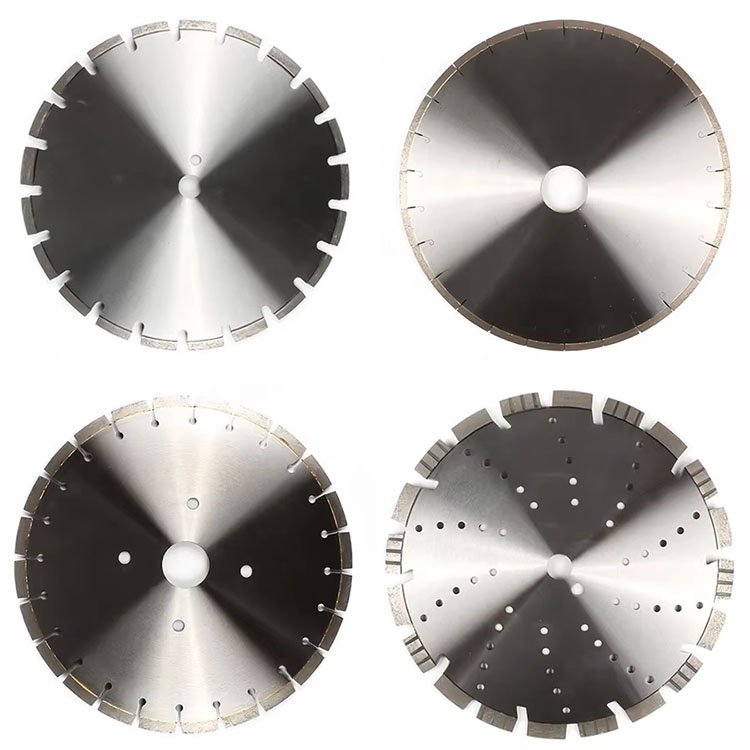

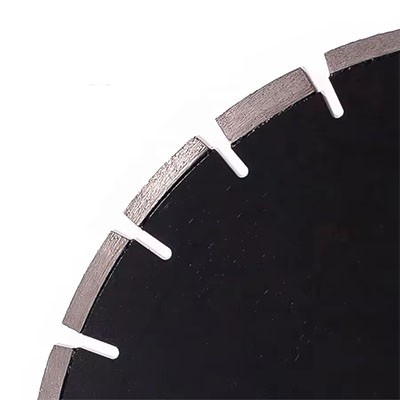

Laser High Frequency Welded Diamond Saw Blades for Cutting Stone, Concrete, Bricks.
Process classification
1. Sintered: divided into cold pressing sintering and hot pressing sintering, pressed and sintered.
2. Welded: divided into brazing and laser welding.
3. Electroplated (brazed): the blade head powder is attached to the substrate by electroplating.
Strict quality management system, Before products are shipped, they have been rigorously tested, and the defective rate is less than 1/10000.
If the product has quality problems, we will replace it and resend it to you for free.
Support customized specifications, OEM, ODM.
We are a manufacturer located in China, not a trader, no middlemen to make a profit.
Buy in bulk to enjoy more discounts.
If you can't find the product or size you need on our website, please contact us via Whatsapp, phone or email.
Out Diameter | Segment | Bore | ||
Inch | MM | Height(mm) | Thickness(mm) | Diameter(mm) |
4 " | 105mm / 110mm | 7mm/10mm | 1.2mm | 16mm / 20mm / 22.2mm |
5 " | 125mm | 7mm/10mm | 1.2mm | 16mm / 20mm / 22.2mm |
7 " | 180mm | 7mm/10mm | 1.4mm | 20mm / 22.2mm |
8 " | 200mm | 7mm/10mm | 1.4mm | 22.2mm / 25.4mm |
9" | 230mm | 7mm/10mm | 1.7mm | 22.2mm / 25.4mm |
10 " | 250mm | 10mm/12mm | 1.7mm | 22.2mm / 25.4mm |
